GNRHS Steam Locomotive Drawings

Click Here to order your steam locomotive drawings!

A set of 5 GN steam locomotive drawings may be purchased for just $30.00 postage paid.  These 17 1/2" x 22 1/2" drawings are printed on parchment paper, shipped in a sturdy mailing tube and are suitable for framing/display in your train room.  Each drawing includes front, side, back and top blueprint views.  There is also a photo of the locomotive.  Most measurements are included.

These drawings were created by FOEB/GNRHS founder Charles F. Martin and generously donated by his family as a fund raiser for the Society.

Below are the five drawings offered as a set including a close-up detail shot of each locomotive:

Click Here to order your steam locomotive drawings!

WARNING:  These are large .jpg files  and may take a while to download (especially if you're on a dial-up connection).  Click on the thumbnailed picture to view the page of your choice.  Below each page is a brief description.

Note:  These low-resolution scans are not as crisp as the actual drawings.

Drawing #1 is a GN Class C-4 0-8-0 # 782.  Detail drawing is of smokebox and cab.

Drawing #2 is a GN Class Q-1 2-10-2 # 2106.  Detail drawing is front smokebox view.

Drawing #3 is a GN Class M-2 2-6-8-0 # 2000.  Detail drawing is cab and tender view.

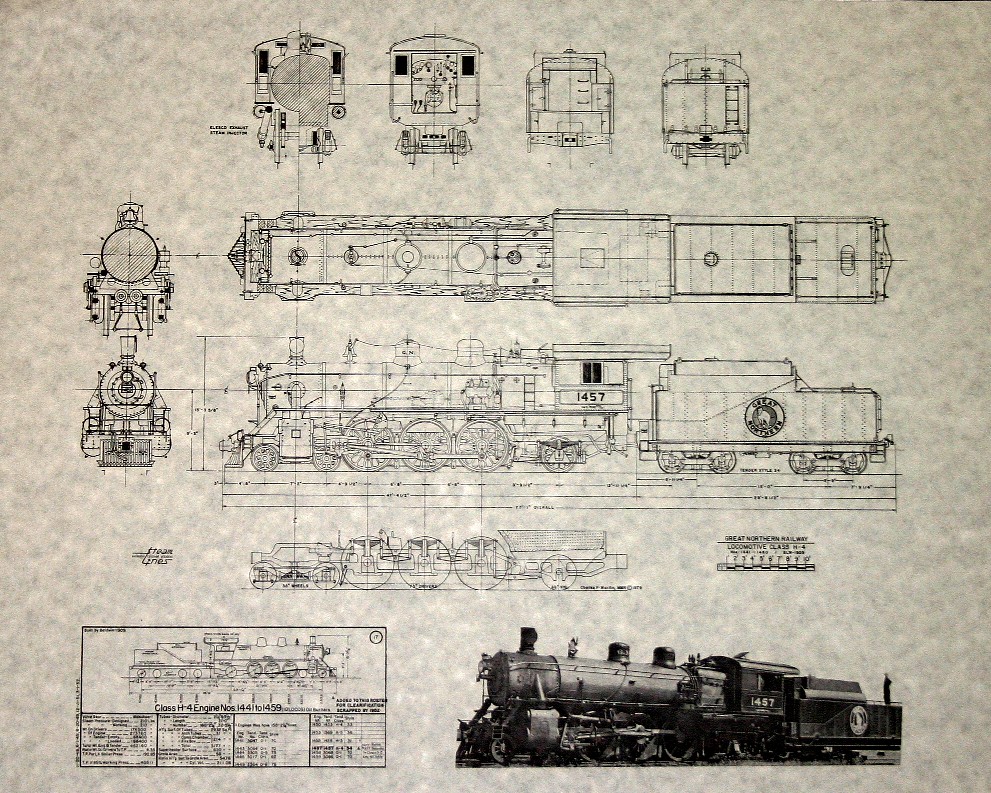

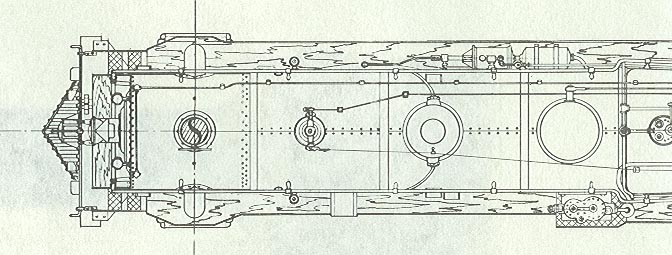

Drawing #4 is a GN Class H-4 4-6-2 # 1457.  Detail drawing is top boiler view.

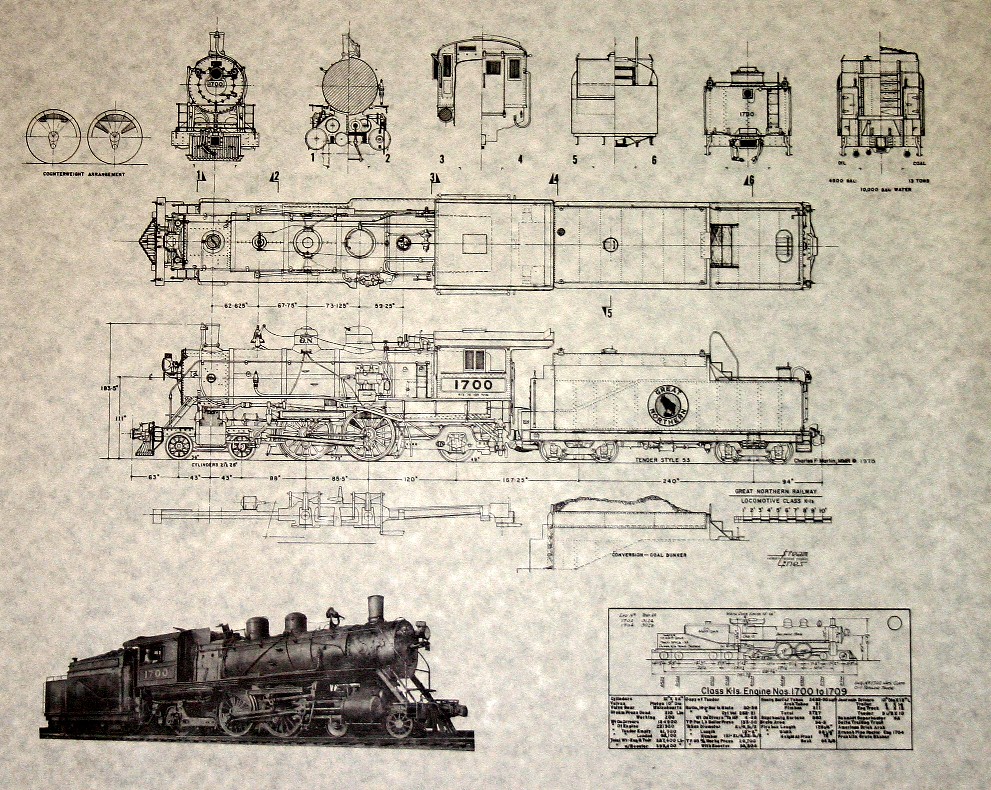

Drawing #5 is a GN Class K-1 4-4-2 # 1700.  Detail drawing is tender and loco data.
